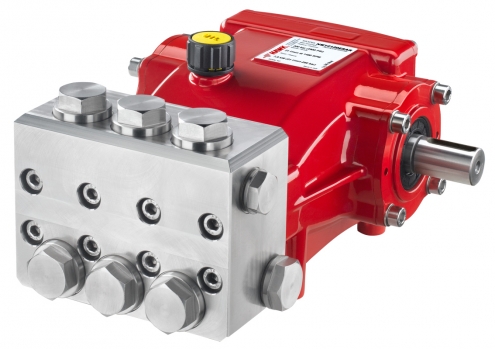

NMT Stainless Steel Chemical Series
NMT-ESA pumps can operate at a maximum pressure of 200 bar and with water temperatures up to 85°C (185°F). Pump Head and internal metal components, in contact with water, has been engineered in 316L stainless steel, as are the valves. Special seals are suitable for use with aggressive chemicals salt water. The painted body also provides greater protection against external aggressions. This pump is particularly so suited for fitting on system for food industry, but it can be used in the chemical sector with use of solvents*.
* See on the pump manual, the list of solvents admitted to use relative percentages.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 11.8 |
| Oil capacity | lt. | 0.7 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 11.8 |
| Oil capacity | lt. | 0.7 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
The NMT Stainless Steel Chemical Series is suitable for the following applications:
Find out about all the models in the series NMT Stainless Steel Chemical.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | |||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F | |||
| NMT1220ESAL | 1.905-203.0 | 12.5 | 15 | 3.3 | 4 | 200 | 2900 | 1450 | 1740 | 6.4 | 7.7 | 4.7 | 5.7 | 85 | 185 |
|
| NMT1220ESAR | 1.905-202.0 | 12.5 | 15 | 3.3 | 4 | 200 | 2900 | 6.4 | 7.7 | 4.7 | 5.7 | 85 | 185 |
|
||
| NMT1520ESAL | 1.905-041.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 9.2 | 5.7 | 6.8 | 85 | 185 |
|
||
| NMT1520ESAR | 1.905-036.0 | 15 | 18 | 4 | 4.7 | 200 | 2900 | 7.7 | 9.2 | 5.7 | 6.8 | 85 | 185 |
|
||
| NMT1820ESAL | 1.905-205.0 | 18 | 21.5 | 4.8 | 5.6 | 200 | 2900 | 9.2 | 11 | 6.8 | 8.1 | 85 | 185 |
|
||
| NMT1820ESAR | 1.905-204.0 | 18 | 21.5 | 4.8 | 5.6 | 200 | 2900 | 9.2 | 11 | 6.8 | 8.1 | 85 | 185 |
|
||
| NMT2120ESAL | 1.905-040.0 | 21 | 25 | 5.5 | 6.6 | 200 | 2900 | 10.7 | 12.8 | 7.9 | 9.4 | 85 | 185 |
|
||
| NMT2120ESAR | 1.905-011.0 | 21 | 25 | 5.5 | 6.6 | 200 | 2900 | 10.7 | 12.8 | 7.9 | 9.4 | 85 | 185 |
|
||
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Hollow shaft electric motor
Hollow shaft electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-407.0 | IEC100 | 22.0 | 5.5 | 4.0 | 1450 | 230/400V | NMT, NMT Car Wash, NMT Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-397.0 | IEC112 | 32.0 | 7.5 | 5.5 | 1450 | 230/400V | NMT, NPM, NMT Car Wash, NMT Nickel-Plated, NPM Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-401.0 | IEC132M | 46.0 | 10.0 | 7.5 | 1450 | 230/400V | NMT, NPM, NMT Car Wash, NMT Nickel-Plated, NPM Nickel-Plated, PXI 350, NLTI, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-402.0 | IEC132M | 52.0 | 12.5 | 9.2 | 1450 | 230/400V | NMT, NPM, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, PXI 350, NLTI, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Double flange electric motor
Double flange electric motors
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-445.0 | IEC132S | 49.0 | 10.0 | 7.5 | 1450 | 230/400V | NMT High Temperature, XLTI High Temperature, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical |
| 1.099-446.0 | IEC132M | 54.0 | 12.5 | 9.2 | 1450 | 230/400V | XLTI High Temperature, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
B3/B14 Electric motor version
B3/B14 Electric motor version
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-413.0 | IEC100 | 21.0 | 4.0 | 3.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 120-C, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-414.0 | IEC100 | 23.0 | 5.5 | 4.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-416.0 | IEC112 | 33.0 | 7.5 | 5.5 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, XLTI High Temperature, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-530.0 | H100/112 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NLTI, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-531.0 | H132 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flexible coupling
Flexible couplings for electic motors
| CODE | MOTOR CONTRUCTION SHAPE | MOTOR P.T.O. Ø | PUMP P.T.O. Ø | FOR PUMP SERIES |
|---|---|---|---|---|
| 1.099-544.0 | H90 | 24 mm | 24 mm | NMT, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-541.0 | H100/112 | 28 mm | 24 mm | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, NLTI, XLTI Atex, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical |
| 1.099-545.0 | H132 | 38 mm | 24 mm | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, PXI 350, XXT, NLTI, XLTI Atex, PXI 500, NMT - Car Wash Heavy Duty, NMT Chemical, XLTI Chemical, XLTI Stainless Steel Chemical, NMT Stainless Steel Chemical, PXI Heavy Duty |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Ordinary Maintenance Tool Kit
Tool kit for ordinary maintenance
| CODE | FOR PUMP SERIES |
|---|---|
| 1.099-667.0 | NMT, NPM, NPM-GR, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
| 1.904-299.0 | NMT High Temperature, NMT Chemical, NMT Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Extraordinary maintenance Kit
| CODE | FOR PUMP SERIES |
|---|---|
| 1.904-414.0 | NMT, NPM, NPM-GR, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, Complete Electric Motopumps Units NMT |
