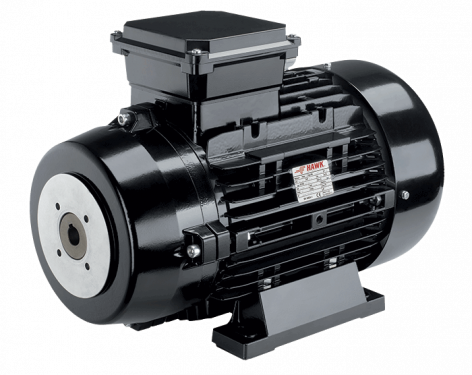

Double flange electric motor

Double flange electric motors

Find out about all the models for this Accessory Double flange electric motor.

CODE MOTOR CONTRUCTION SHAPE WEIGHT RATED POWER OUTPUT SPEED VOLTAGE FOR PUMP SERIES
Kg HP KW RPM
1.099-432.0 IEC160L 100 20.0 15.0 1450 400/690V XLTI, XLTI High Temperature, PXI 350 bar, XXT, PXI 500 bar, XXT High Temperature
1.099-433.0 IEC160L 112 25.0 18.5 1450 400/690V XLTI, PXI 350 bar, XXT, PXI 500 bar, XXT High Temperature
1.099-450.0 IEC160L 117 30 22 1450 400/690V PXI 350 bar, XXT, PXI 500 bar
1.099-451.0 IEC160L 117 30 22 1450 400/690V MXT High Temperature
1.099-452.0 IEC180L 150 40 30 1450 400/690V MXT, MXT High Temperature, MPX 350 bar, MPX 500 bar
