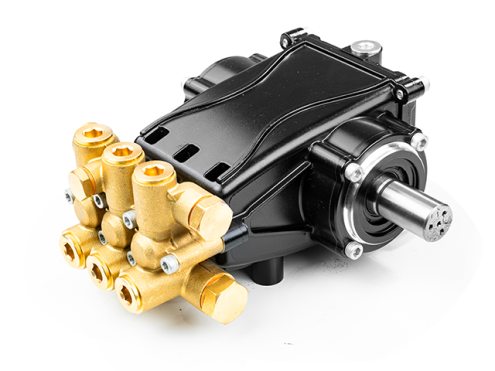

CHS 120 Series
CHS 120 pumps can operate at a maximum pressure of 120 bar and with water temperatures up to 65°C (150F). This model is a particularly good choice for fifitting on professional high-pressure washers powered by a single phase electric motor or for misting systems.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 8.2 |
| Oil capacity | lt. | 0.5 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 8.2 |
| Oil capacity | lt. | 0.5 |
| Inlet | G | 1/2'' |
| Outlet | G | 3/8'' |
Find out about all the models in the series CHS 120.
|
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | POWER TAKE-OFF | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | ||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||
|
NEW CHS1015R |
10 | 12 | 2.6 | 3.2 | 150 | 2175 | 1450 | 1740 | 3.9 | 4.8 | 2.9 | 3.5 |
|
|
NEW CHS1211R |
11.6 | 13.9 | 3 | 3.7 | 110 | 1595 | 3.4 | 4.1 | 2.5 | 3 |
|
||
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flanges
Flanges
for electric motors
| CODE | MOTOR CONTRUCTION SHAPE | FOR PUMP SERIES |
|---|---|---|
| 1.099-530.0 | H100/112 B14 | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, NLTI, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, CHD 200, CHS 120 |
| 1.099-534.0 | H90/B14 | CHS 120 |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Flexible coupling
Flexible couplings for electic motors
| CODE | MOTOR CONTRUCTION SHAPE | MOTOR P.T.O. Ø | PUMP P.T.O. Ø | FOR PUMP SERIES |
|---|---|---|---|---|
| 1.099-542.0 | H90 | 24 mm | 24 mm | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP Chemical, NHDP Stainless Steel Chemical, CHD 200, CHS 120 |
| 1.099-541.0 | H100/112 | 28 mm | 24 mm | NMT, NPM, NMT Car Wash, NMT High Temperature, NMT Nickel-Plated, NPM Nickel-Plated, XLTI, XLTI High Temperature, NLTI, XLTI Atex, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, CHD 200, CHS 120 |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
VBT
Head-mounted unloader valve with by-pass
Max 25 lpm & 275 bar
| CODE | FLOW RATE | MAX PRESSURE | INLET | OUTLET | FOR PUMP SERIES | ||
|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | ||||
| 1.099-485.0 | 25 | 6.6 | 210 | 3045 | G 1/2 F | G 3/8 M | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA, CHD 200, CHS-G, CFG, CHS 120 |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
Pressure Gauge
Hawk's water pressure gauge is a reliable and accurate instrument for monitoring pump pressure in high-pressure systems.
Available with radial or axial connection and G 1/4 M or G 1/2 M threads, it is designed to withstand pressures up to 1600 bar (23206 PSI). The available scales, from 160 to 1600 bar, cover a wide range of use, adapting to a variety of operational needs.
Thanks to its quality construction and the availability of INOX-ATEX versions, this high-pressure gauge is also suitable for complex and potentially explosive environments. Its high strength and measurement accuracy make it ideal for many professional applications.
Rugged, accurate and versatile, the Hawk pressure gauge is the perfect solution for ensuring consistent water pressure control in any type of professional facility.
| CODE | COUPLING | SCALE | INLET | |
|---|---|---|---|---|
| BAR | PSI | |||
| 1.099-556.0 | Radial / Radiale | 250 | 3625 | G 1/4 M |
| 1.099-557.0 | Axial / Assiale | 160 | 2300 | G 1/4 M |
| 1.099-558.0 | Axial / Assiale | 250 | 3600 | G 1/4 M |
