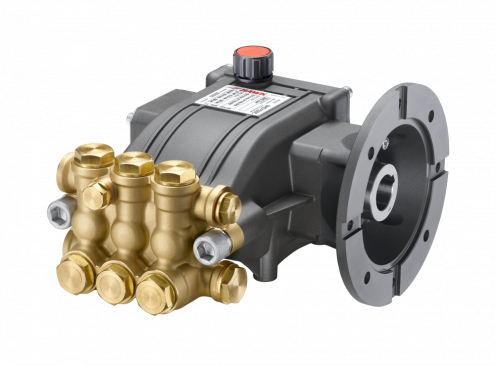

NHD-N Series
NHD-N pumps can operate at a maximum pressure of 3000 PSI and with water temperatures up to 65°C (150F). This is a more cost-effective alternative in our range of 200 bar pumps. It is a particularly good choice for fitting on compact professional high-pressure washers as well as washing systems for motor vehicles on account of the excellent duration of its seals The flange on this pump makes it suitable for fitting on all NEMA standard electric motors on the market.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 7,7 |
| Oil capacity | lt. | 0,4 |
| Inlet | G | 1/2" |
| Outlet | G | 3/8" |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 7,7 |
| Oil capacity | lt. | 0,4 |
| Inlet | G | 1/2" |
| Outlet | G | 3/8" |
Find out about all the models in the series NHD-N.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | POWER TAKE-OFF | |||
|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | HP | KW | ||||
| NHD2030NEL | 1.905-721.0 | 8 | 2 | 200 | 2900 | 1725 | 3.9 | 2.8 |
|
| NHD2030NER | 1.905-720.0 | 8 | 2 | 200 | 2900 | 3.9 | 2.8 |
|
|
| NHD2830NEL | 1.905-723.0 | 11 | 2.8 | 200 | 2900 | 5.5 | 4 |
|
|
| NHD2830NER | 1.905-722.0 | 11 | 2.8 | 200 | 2900 | 5.5 | 4 |
|
|
| NHD2030FNEL | 1.905-725.0 | 8 | 2 | 200 | 2900 | 3450 | 3.5 | 2.6 |
|
| NHD2030FNER | 1.905-724.0 | 8 | 2 | 200 | 2900 | 3.5 | 2.6 |
|
|
| NHD2830FNEL | 1.905-727.0 | 11 | 2.8 | 200 | 2900 | 5.3 | 3.9 |
|
|
| NHD2830FNER | 1.905-726.0 | 11 | 2.8 | 200 | 2900 | 5.3 | 3.9 |
|
|
| NHD3530FNEL | 1.905-729.0 | 13 | 3.5 | 200 | 2900 | 6.8 | 5 |
|
|
| NHD3530FNER | 1.905-728.0 | 13 | 3.5 | 200 | 2900 | 6.8 | 5 |
|
|
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
VBT
Head-mounted unloader valve with by-pass
Max 25 lpm & 275 bar
| CODE | FLOW RATE | MAX PRESSURE | INLET | OUTLET | FOR PUMP SERIES | ||
|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | ||||
| 1.099-485.0 | 25 | 6.6 | 210 | 3045 | G 1/2 F | G 3/8 M | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA |
