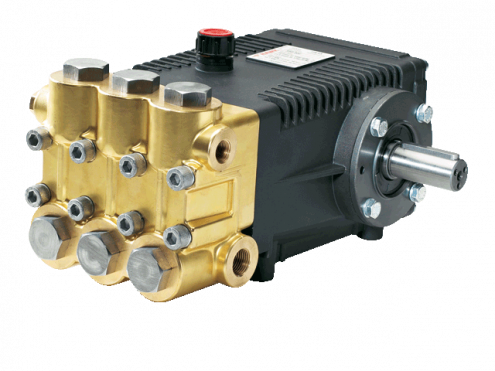

Find out about all the models in the series PX.
|
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | ||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F | ||
| PX125L | 12.5 | 15 | 3.2 | 4 | 350 | 5000 | 1450 | 1740 | 11.5 | 13.5 | 8.4 | 10 | - | - |
|
| PX125R | 12.5 | 15 | 3.2 | 4 | 350 | 5000 | 11.5 | 13.5 | 8.4 | 10 | - | - |
|
||
| PX15L | 15 | 18 | 4 | 4.7 | 350 | 5000 | 13.5 | 16 | 10 | 12 | 65 | - |
|
||
| PX15R | 15 | 18 | 4 | 4.7 | 350 | 5000 | 13.5 | 16 | 10 | 12 | - | - |
|
||
| PX17L | 17 | 20 | 4.5 | 5.5 | 350 | 5000 | 15 | 18 | 11.2 | 13.2 | - | - |
|
||
| PX17R | 17 | 20 | 4.5 | 5.5 | 350 | 5000 | 15 | 18 | 11.2 | 13.2 | - | - |
|
||
