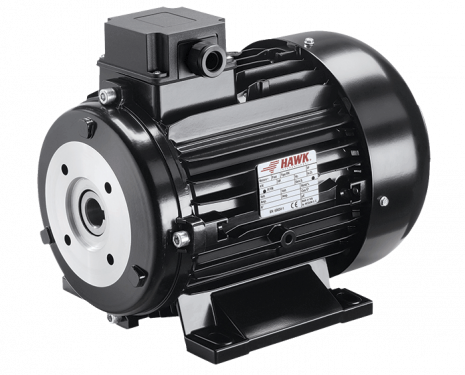

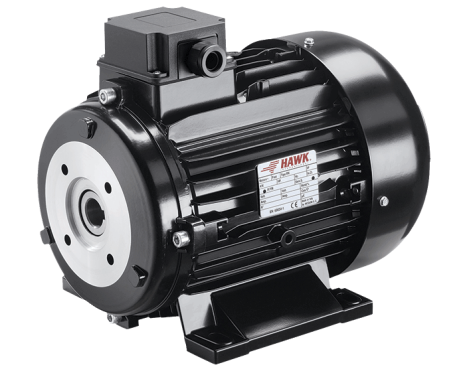

Hollow shaft electric motor

Hollow shaft electric motors


PART NO. MOTOR CONTRUCTION SHAPE RATED OUTPUT SPEED VOLTAGE WEIGHT FOR PUMP SERIES
    HP KW RPM   Kg
580204 IEC112 7.5 5.5 1450 230-400V 32.0 NHD NST HD
580201 IEC132M 12.5 9.2 1450 400-690V 100 NMT NPM NLTI XLTI PXI XXT
580202 IEC132M 15 11 1450 400-690V 100 NLTI XLTI PXI XXT
580084 IEC160L 20 15 1450 400-690V 100 NLTI XLTI PXI XXT
580085 IEC160L 25 18.5 1450 400-690V 112 NLTI-XLTI-PXI-XXT
580211 IEC160L 25 22 1450 400-690V 112 PXI XXT XLTI
580222 IEC160L 30 22 1450 400-690V 117 MXT MPX
580223 IEC180 40 30 1450 400-690V 150 MXT MPX
580040 IEC100 3.0 2.2 1450 230V 22.0 NST - HD
580008 IEC100 4.0 3.0 1450 230/400V 21.0 NST - HD
580004 IEC100 5.5 4.0 1450 230/400V 22.0 NST - HD
580017 IEC100 5.5 4.0 1450 230/400V 22.0 NMT - NPM - NLTI - XLTI
580204 IEC112 7.5 5.5 1450 230/400V 32.0 NST - NHD
580001 IEC112 7.5 5.5 1450 230/400V 32.0 NMT - NPM - NLTI - XLTI
580011 IEC132M 10.0 7.5 1450 230/400V 48.0 NMT - NPM - NLTI - XLTI - PXI - XXT
580012 IEC132M 12.5 9.2 1450 230/400V 53.0 NMT - NPM - NLTI - XLTI - PXI - XXT
580021 IEC132M 15.0 11.0 1450 230/400V 56.0 NLT - XLTI - PXI - XXT





This accessory is suitable for the following applications:
