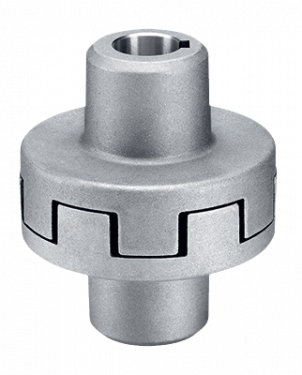

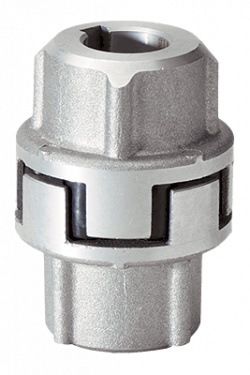

Flexible coupling

Flexible couplings for electic motors


PART NO. MOTOR P.T.O. Ø MOTOR CONTRUCTION SHAPE PUMP P.T.O. Ø FOR PUMP SERIES

241515 24 mm H90 24 mm NST - HD - NHD
241520 24 mm H90 24 mm NMT - NPM - NLTI
241516 28 mm H100/112 24 mm NST - HD - NHD
241514 28 mm H100/112 24 mm NMT - NPM - NLTI
241524 38 mm H132 24 mm NMT - NPM - NLTI - XLTI - PXI - XXT
241531 42 mm H160 30 mm MXT-MPX
241532 48 mm H180 30 mm MXT-MPX
241533 55 H200 30 MXP MXT HT
24136 60 H225 40 GXT GPX
241526 42 mm H160 24 mm MXT - XLTI - PXI - XXT





This accessory is suitable for the following applications:





Technical Drawings
