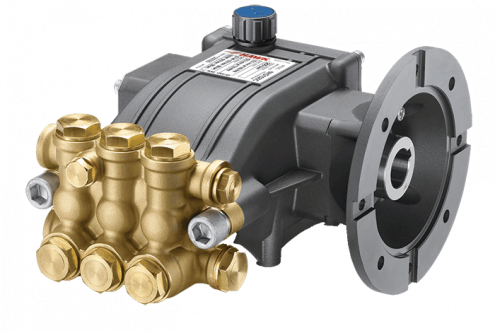

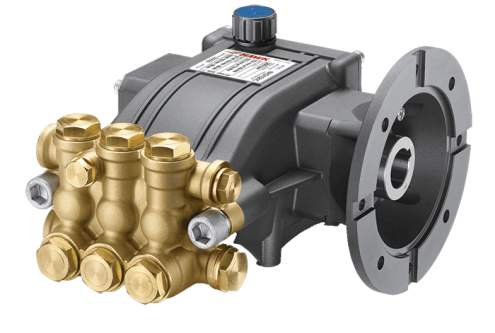

NHD-C 150 bar Series
NHD150-C pumps can operate at a maximum pressure of 150 bar and with water temperatures up to 65°C (150F). This model is a particularly good choice for fitting on professional high-pressure washers and is a sturdier alternative to the 120bar version The flange on this pump makes it suitable for fitting on all IEC standard electric motors on the market.
TECHNICAL CHARACTERISTICS
| Weight | Kg | 7,7 |
| Oil capacity | lt. | 0,4 |
| Inlet | G | 1/2" |
| Outlet | G | 3/8" |
TECHNICAL CHARACTERISTICS
| Weight | Kg | 7,7 |
| Oil capacity | lt. | 0,4 |
| Inlet | G | 1/2" |
| Outlet | G | 3/8" |
Find out about all the models in the series NHD-C 150 bar.
|
Part. No.
CODE |
Part. No.
CODE |
FLOW RATE | MAX PRESSURE | RPM | MAX POWER | TEMPERATURE | POWER TAKE-OFF | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | HP | KW | |||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | BAR | PSI | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | °C | °F | |||
| NHD8515CL | 1.099-227.0 | 8.5 | 10.1 | 2.2 | 2.7 | 150 | 2175 | 1450 | 1740 | 3.2 | 3.8 | 2.4 | 2.9 | 65 | 150 |
|
| NHD8515CR | 1.099-228.0 | 8.5 | 10.1 | 2.2 | 2.7 | 150 | 2175 | 3.2 | 3.8 | 2.4 | 2.9 | 65 | 150 |
|
||
| NHD1015CL | 1.099-229.0 | 10 | 12 | 2.6 | 3.2 | 150 | 2175 | 3.7 | 4.7 | 2.8 | 3.5 | 65 | 150 |
|
||
| NHD1015CR | 1.099-230.0 | 10 | 12 | 2.6 | 3.2 | 150 | 2175 | 3.7 | 4.7 | 2.8 | 3.5 | 65 | 150 |
|
||
| NHD1115CL | 1.099-231.0 | 11 | 13.2 | 2.9 | 3.5 | 150 | 2175 | 4.3 | 5.1 | 3.2 | 3.8 | 65 | 150 |
|
||
| NHD1115CR | 1.099-232.0 | 11 | 13.2 | 2.9 | 3.5 | 150 | 2175 | 4.3 | 5.1 | 3.2 | 3.8 | 65 | 150 |
|
||
| NHD1215CL | 1.099-233.0 | 12 | 14 | 3.1 | 3.7 | 150 | 2175 | 4.6 | 5.4 | 3.4 | 4 | 65 | 150 |
|
||
| NHD1215CR | 1.099-234.0 | 12 | 14 | 3.1 | 3.7 | 150 | 2175 | 4.6 | 5.4 | 3.4 | 4 | 65 | 150 |
|
||
| NHD1315CL | 1.099-235.0 | 13 | 15.5 | 3.4 | 4 | 150 | 2175 | 5 | 5.8 | 3.7 | 4.3 | 65 | 150 |
|
||
| NHD1315CR | 1.099-236.0 | 13 | 15.5 | 3.4 | 4 | 150 | 2175 | 5 | 5.8 | 3.7 | 4.3 | 65 | 150 |
|
||
| NHD1415CL | 1.099-237.0 | 14 | 17 | 3.7 | 4.5 | 150 | 2175 | 5.4 | 6.4 | 4 | 4.7 | 65 | 150 |
|
||
| NHD1415CR | 1.099-238.0 | 14 | 17 | 3.7 | 4.5 | 150 | 2175 | 5.4 | 6.4 | 4 | 4.7 | 65 | 150 |
|
||
| NHD1515CL | 1.099-239.0 | 15 | 18 | 4 | 4.7 | 150 | 2175 | 5.8 | 7 | 4.3 | 5.2 | 65 | 150 |
|
||
| NHD1515CR | 1.099-240.0 | 15 | 18 | 4 | 4.7 | 150 | 2175 | 5.8 | 7 | 4.3 | 5.2 | 65 | 150 |
|
||
Discover the related ACCESSORIES
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
B3/B14 Electric motor version
B3/B14 Electric motor version
| CODE | MOTOR CONTRUCTION SHAPE | WEIGHT | RATED POWER OUTPUT | SPEED | VOLTAGE | FOR PUMP SERIES | |
|---|---|---|---|---|---|---|---|
| Kg | HP | KW | RPM | ||||
| 1.099-413.0 | IEC100 | 21.0 | 4.0 | 3.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 120-C, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
| 1.099-414.0 | IEC100 | 23.0 | 5.5 | 4.0 | 1450 | 230/400V | NMT Car Wash, NMT High Temperature, NHDP 150-C, NHDP 200-C, NMT - Car Wash Heavy Duty, NMT Chemical, NMT Stainless Steel Chemical, NHDP Chemical, NHDP Stainless Steel Chemical |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
VBT
Head-mounted unloader valve with by-pass
Max 25 lpm & 275 bar
| CODE | FLOW RATE | MAX PRESSURE | INLET | OUTLET | FOR PUMP SERIES | ||
|---|---|---|---|---|---|---|---|
| L/MIN | US GPM | BAR | PSI | ||||
| 1.099-485.0 | 25 | 6.6 | 210 | 3045 | G 1/2 F | G 3/8 M | NHDP Car Wash, NHDP 120, NHDP 150, NHDP 200, NHDP 120-C, NHDP 150-C, NHDP 200-C, NHDP-G, NHDP-G1, NHDP-HY, NHDP 200-NEMA |
This is a selection of the accessories that can be used with this Series.
If you’d like to see all the articles, go to the complete data sheet.
